Areas of application

KNOLL VRF vacuum rotation filters are backflush filters for cleaning cooling lubricants (KSS) from machining processes.

Use as a stand-alone cleaning unit or in combination with chip conveyors (e.g., on machining centres)
Local (for one machine tool) or centralized use (for several machine tools) possible

Features	Benefits
Compact design	Space-saving installation
No filter consumables	Low operating costs
Integrated scraper belt	Problem-free discharge of chips, even from light metal
Universally applicable for different machining processes, materials, cooling lubricants, volume flows and levels of purity	Einfache Auslegung und Planung
Modular construction kit	Specific system according to customer requirements Short delivery time Good availability of replacement parts
Plug and Play through universal, digital interfaces	Quick installation and start-up
Available as a modular system or special system	Individual choice with impact on price, delivery time, and configuration

Description

Filtering process

Contaminated liquid flows through the intake box into the filter.
The filter pump draws contaminated liquid into the interior of the filter drum.
The filter element on the filter drum retains dirt particles as they flow through.
The dirt particles form a filter cake that also separates smaller particles.
The filter pump conveys the cleaned liquid into the tank.
Low and high-pressure pumps supply the machine tool with cleaned cooling lubricant as required.

Regeneration process

The growing filter cake increases the flow resistance; the underpressure rises.
At a defined underpressure, the filter drum rotates and the backwash pump loosens the filter cake.
The scraper belt transports the settled sludge out of the filter into the sludge tank.

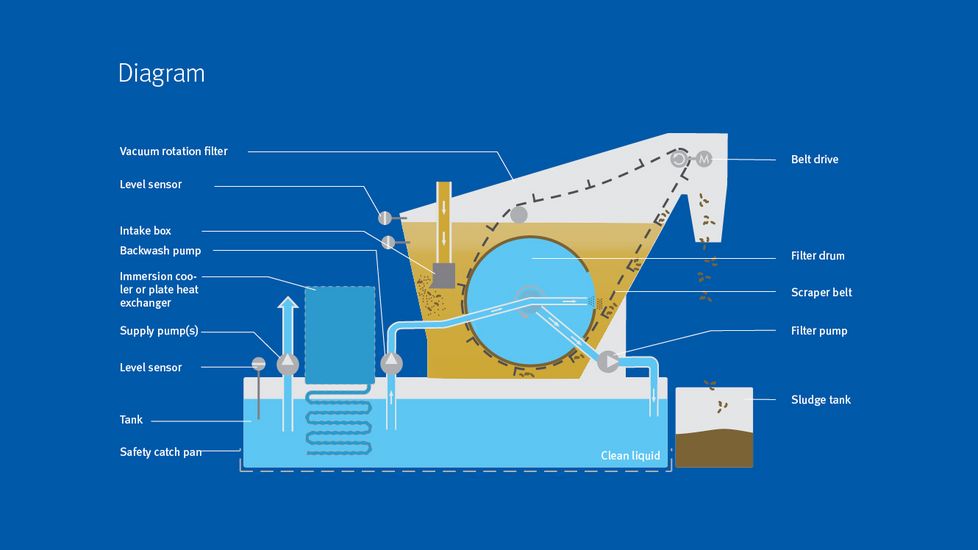

Scheme

Downloads

Filter systems

Vacuum rotation filter VRF

Data sheet VRF 150/300/500/700

pdf (1 MB)

Data sheet VRF 250/450/650/900

pdf (727 KB)
