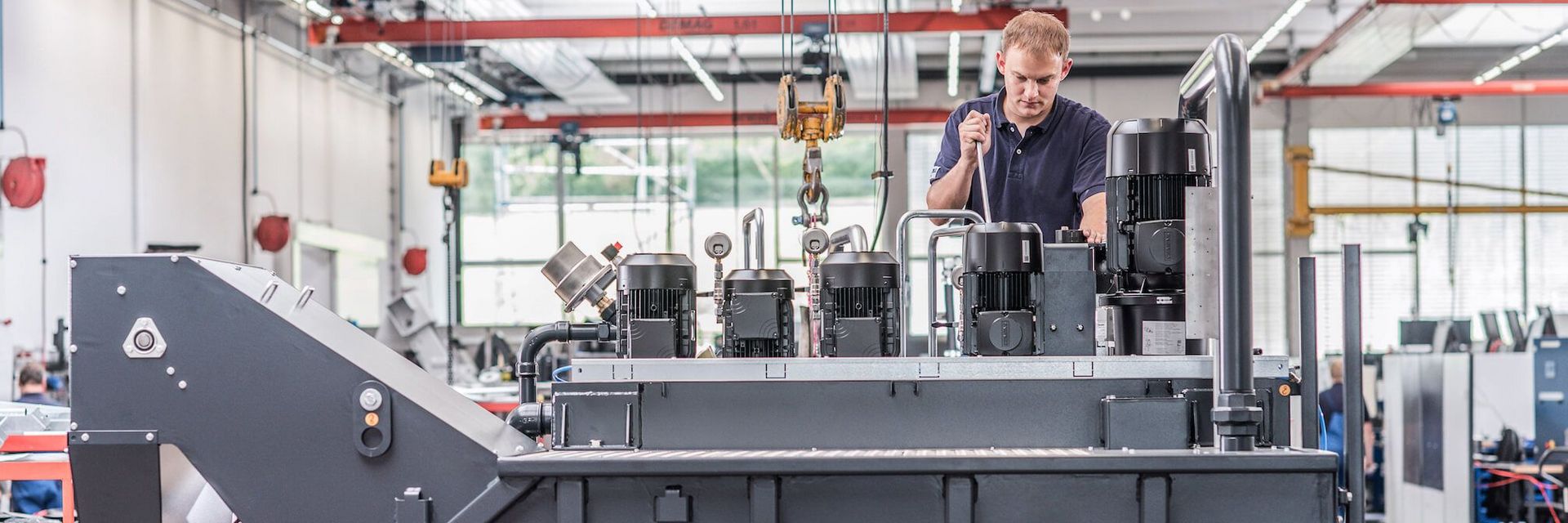

Systems for chip processing

The treatment of chips has many advantages: they are dry and separated by type, so disposal costs are low. Depending on the material, it may even be possible to sell the chips. A system for chip treatment includes different components depending on the requirements: conveyor and collection devices, magnetic separator technology, filter and volume-reducing briquetting presses. Containers or chip silos are also required. The components can be linked to one another and operated completely automatically.

Anwendungsbeispiel Systeme zur Späneaufbereitung - KNOLL Maschinenbau GmbH
Collecting conveyor with discharge into screw conveyor for continuous chip dispensing, drying of the chips in a centrifuge, distribution into four containers.
Anwendungsbeispiel Systeme zur Späneaufbereitung - KNOLL Maschinenbau GmbH
Chip distribution for steel, stainless steel, and brass through manual task with swarf trolleys, chip drying for brass via chip centrifuge, distribution to truck containers.
Anwendungsbeispiel Systeme zur Späneaufbereitung - KNOLL Maschinenbau GmbH
Central chip treatment with lift-tip device, milling breaker, scraper belt conveyor, chip centrifuge, and distribution slide.
Anwendungsbeispiel Systeme zur Späneaufbereitung - KNOLL Maschinenbau GmbH
Central chip processing by a lift-tip device, chip breaker, conveyor to chip centrifuge, discharge via scraper belt conveyor to containers via a swivel chute. Fluid centrifuge for cleaning of the separated oil.

Areas of application

The chip processing system is suitable for both semi-automatic and fully automatic processing of metal chips. Chips are transported from the processing machines by automatic conveyor systems or by operating personnel with trolleys/containers. The system is used in virtually all production areas of the machining industry. Different materials (e.g. aluminium, steel or cast iron) can be processed by means of separate systems.



Properties

  • Chip drying is essential to ensuring safe transportation on public routes
  • Volume reduction reduces storage and transportation costs
  • Recovery of chips and cooling lubricant protects the environment and reduces costs



Possible main components

  • Lifting/tilting device
  • Chip reducer
  • Chip centrifuge
  • Chip conveyor
  • Separating channels
  • Magnetic separator technology
  • Briquetting press
  • Cooling-lubricant filter and collecting container
  • Control technology and cabling
  • Container filling
  • Chip silo
