Products - Automation - Automated Guided Vehicles

Progressive automation continually requires new solutions in the logistics and production environment. Our partner SAFELOG provides the answer to all transport questions in a flexible and digital environment with agent-based mobile transport robots. Intelligent Automated Guided Vehicles (AGVs) stand for the forklift-free and automated JIS and JIT supply of assembly lines and packaging stations.

There are five models to choose from, depending on the task and operational scenario. All units are suitable for either towing trolleys and trailers and/or transporting toploads. AGV superstructures and peripheral systems are optionally available for customer-specific processes.

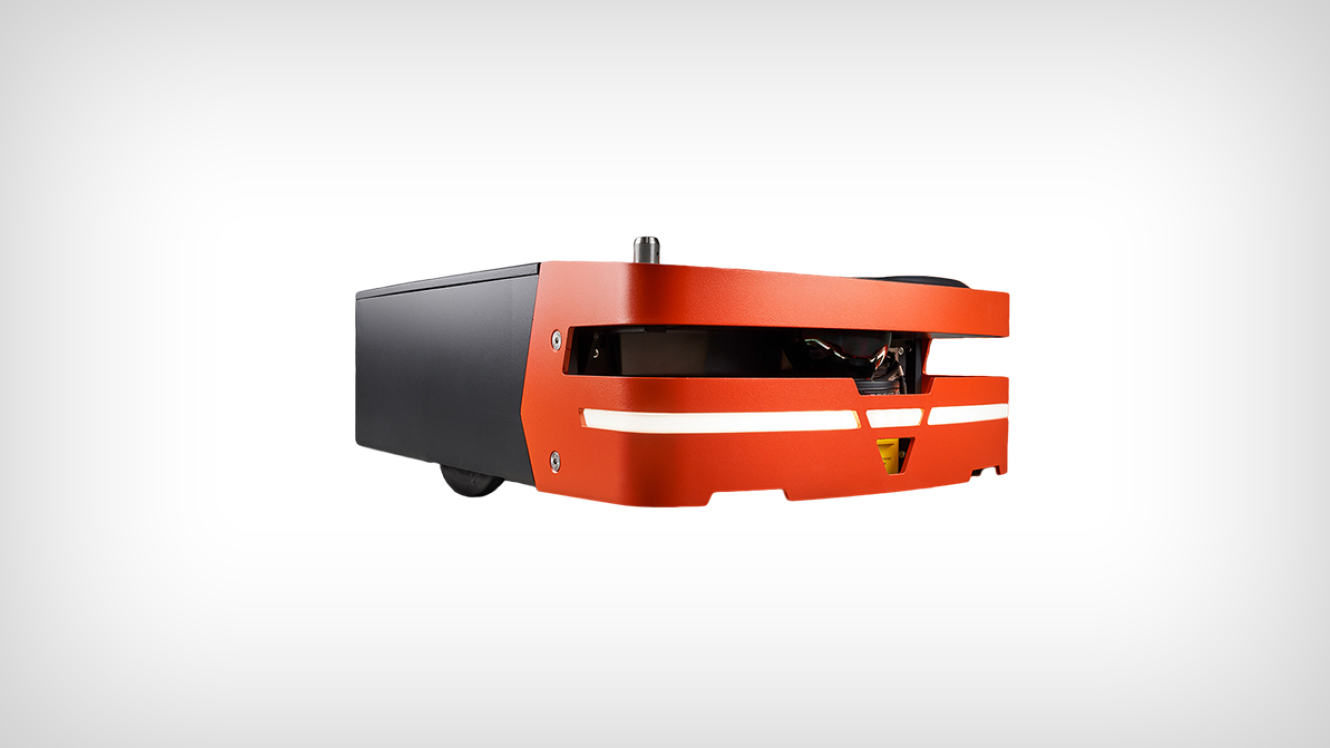

AGV S3

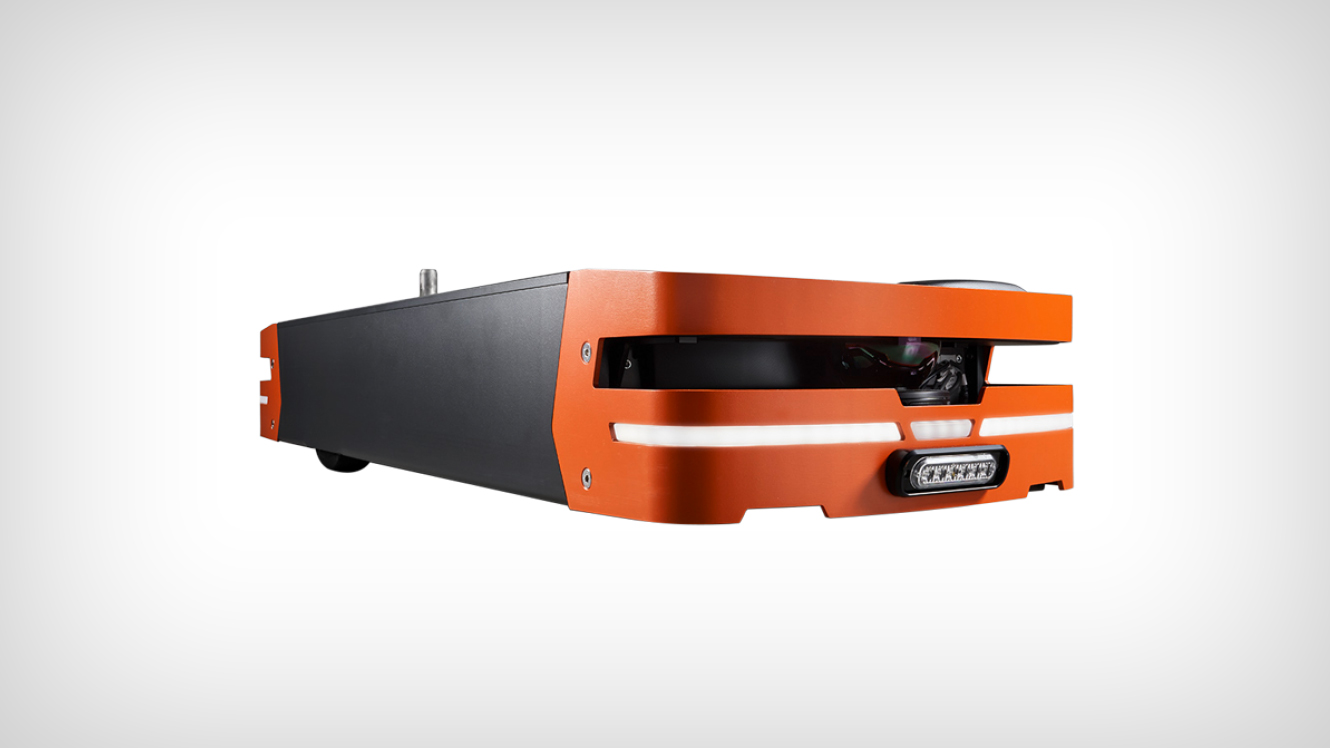

AGV M4

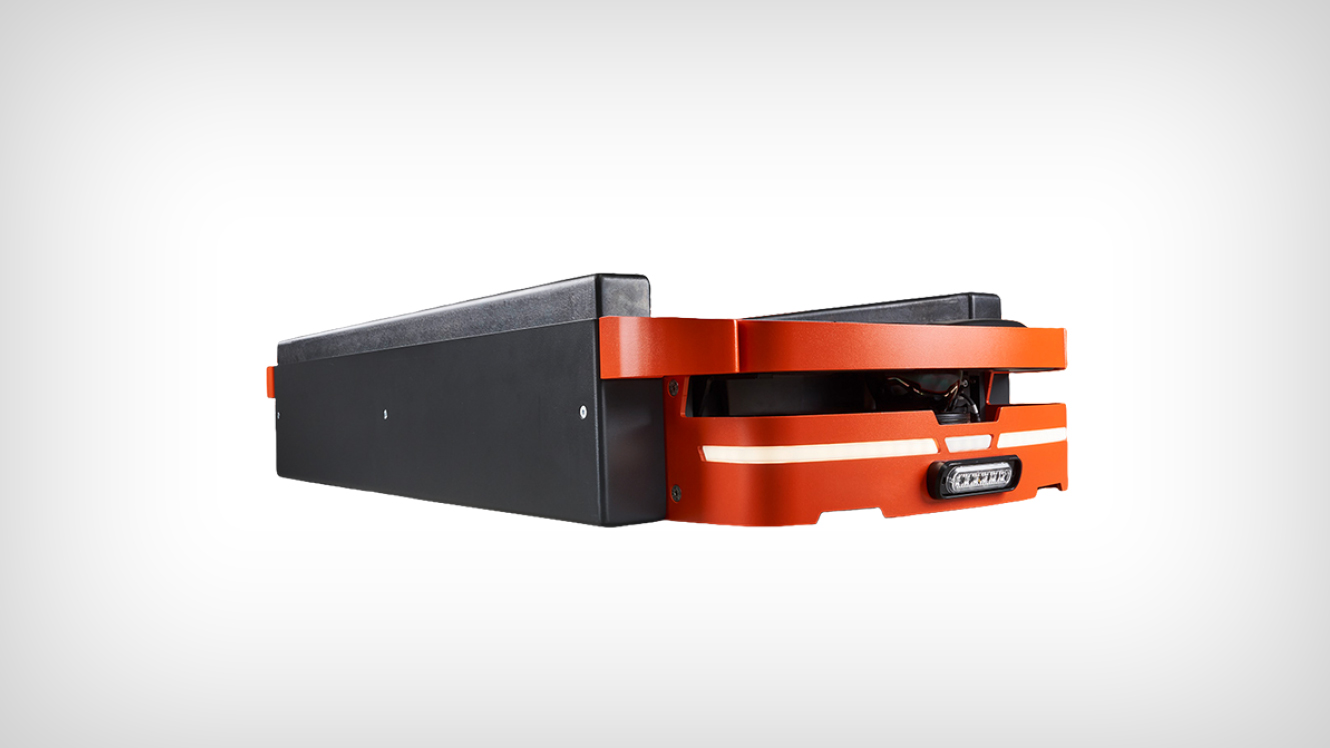

AGV M4-C

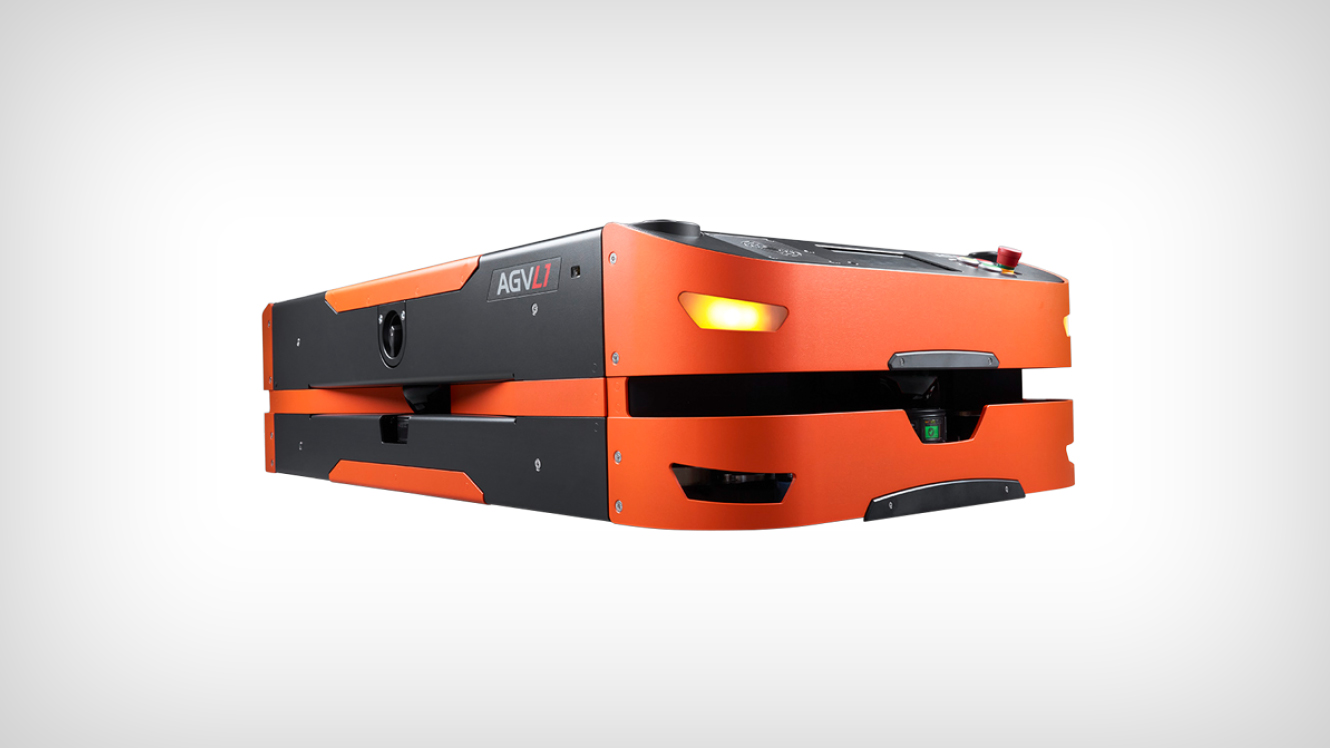

AGV L1

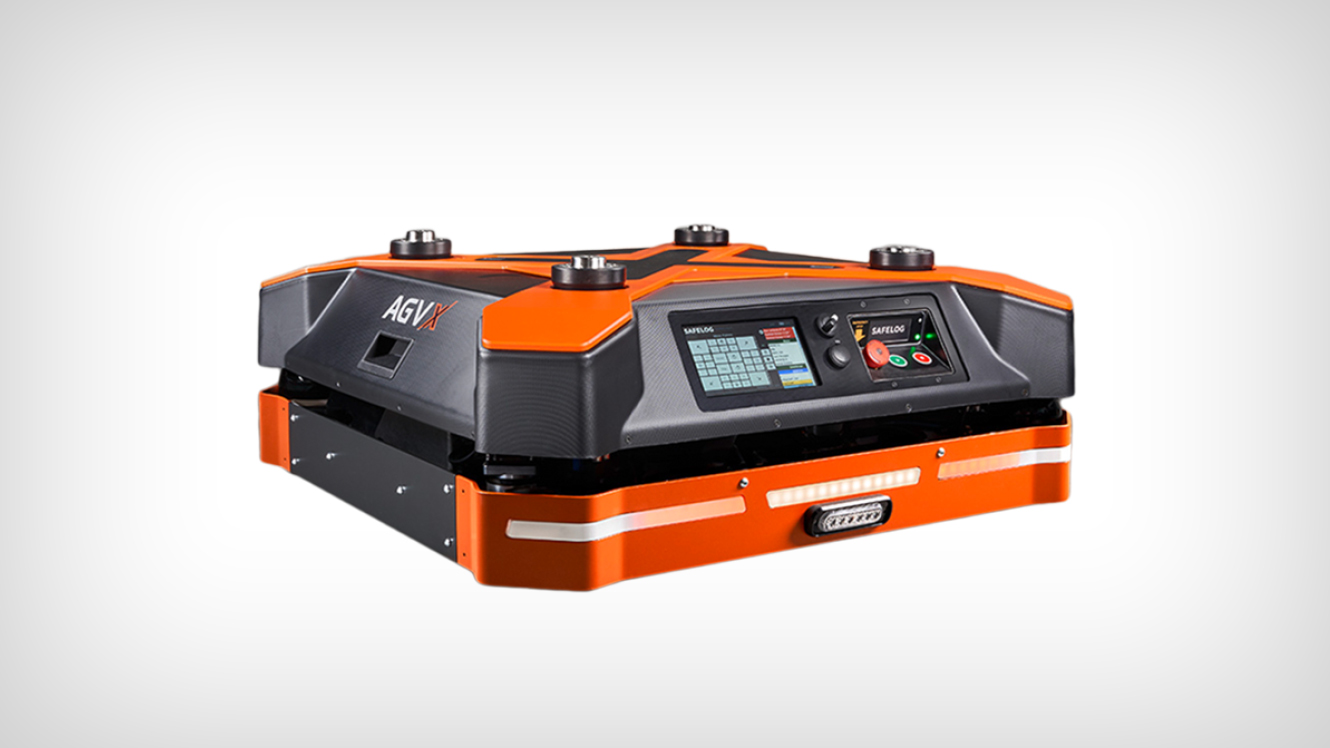

AGV X1

Forward and reverse travel possible
Turn around in a lane width of 1 m
Wear-free charging in the process using an inductive charging system
LiFePo4 battery
Flat design with a height of just 220 mm, making it ideal for driving underneath
7'' touch display for easy handling
Agent-based control for communication between the AGV and its environment
Electric lifting pin for attachment and delivery of trailers up to 500 kg
Travel speeds of up to 1.6 m/s
Hybrid navigation of magnetic track, contour navigation, camera navigation and odometry
Safety laser scanner in the main direction of travel

Forward and reverse travel possible
Wear-free charging in the process using an inductive charging system
Scalable battery capacity from LiFePo4 batteries for adapting to process requirements
Flat AGV with a height of just 220 mm, making it ideal for driving underneath
7'' touch display for easy handling
Agent-based control for communication between the AGV and its environment
Electric lifting pin for automatic attachment and delivery of trailers up to 1,500 kg
Travel speeds from 0.02 m/s to 1.6 m/s
Hybrid navigation of magnetic track, contour navigation, camera navigation and odometry
Safety laser scanners in each direction of travel

Forward and reverse travel possible
Wear-free charging in the process using an inductive charging system
Scalable battery capacity from LiFePo4 batteries for adapting to process requirements
Flat AGV with a height of just 220 mm, making it ideal for driving underneath
7'' touch display for easy handling
Agent-based control for communication between the AGV and its environment
Electric scissor lift for lifting loads of up to 1000 kg
Lifting height of up to 40 mm in 5 seconds
Travel speeds from 0.02 m/s to 1.6 m/s
Hybrid navigation of magnetic track, contour navigation, camera navigation and odometry
Safety laser scanners in each direction of travel

Surface-movable/omnidirectional
Charging during the process with sliding floor contacts
7'' touch display for easy handling
Agent-based control for communication between the AGV and its environment
Variable setups, e.g., conveyor technology
Lift loads of up to 1,500 kg with four lifting columns
Transports up to 3,000 kg
Safety laser scanners in each direction of travel
Travel speeds up to 1.0 m/s

Forward and reverse travel possible
Differential drive allows turning on the spot
Wear-free charging in the process using an inductive charging system
Scalable battery capacity from LiFePo4 batteries for adapting to process requirements
7'' touch display for easy handling
Agent-based control for communication between the AGV and its environment
Four electric lifting columns for lifting loads of up to 1,500 kg
Travel speeds up to 1.6 m/s
Hybrid navigation of magnetic track, contour navigation, camera navigation and odometry
Diagonally arranged safety laser scanners
