Products - Single systems - Filter systems - Compact filter KF-E

Application

KNOLL compact filters KF-E are belt filters for cleaning cooling lubricants of machining processes

Use as stand-alone cleaning unit to provide pre-filtration for ultra-fine filtration or combined with chip conveyors (e.g. in machining centers)
Local (for one machine tool) or central (for several machine tools) use possible

Properties	Benefits
Compact design	Space-saving setup
Good price-performance ratio	Short amortization time
Greater hydrostatic pressure as compared to flat-bed filters	Higher delivery rate, lower fleece consumption and better degree of purity
Sweeping strips and scraper	Problem-free discharge of chips, even light metal ones
Endless filter belt	Reduction of consumable and disposal costs
No carrying of cooling lubricant by the filter fleece	Reduction of costs for cooling lubricants

Description

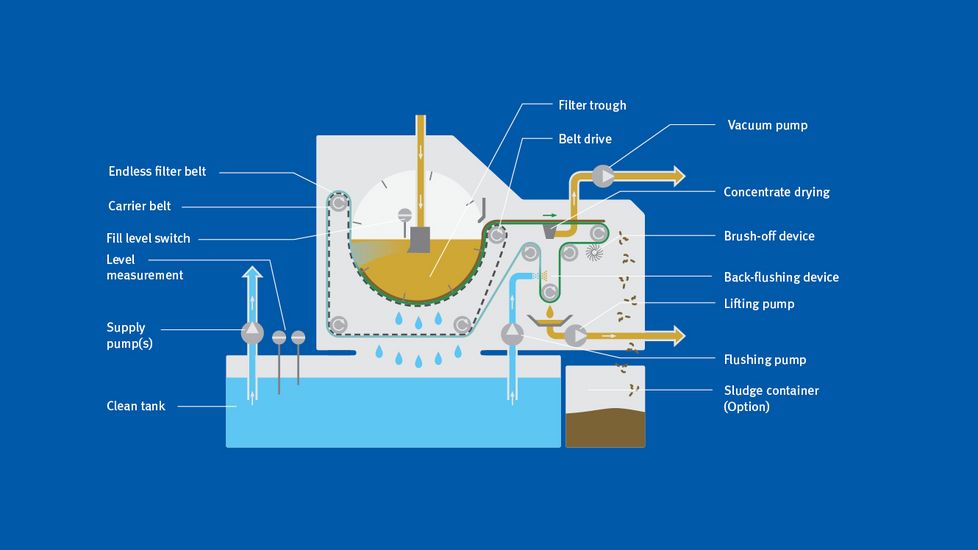

Filtration process

Contaminated liquid flows from the side through the inlet box into the filter trough
The filter fleece holds back the contaminant particles during streaming
The contaminant particles form a filter cake, which separates even tiny dirt particles
The filtered fluid collects in the clean tank

Filter belt regeneration

The growing filter cakes increase the flow resistance
The fluid level in the filter trough increases
The belt drive switches on at a defined level (alternatively: time-controlled)
The carrier belt transports a piece of clean filter belt to the filter surface
The fluid level decreases again
A brush and back-flushing device clean the filter belt

Downloads

Filter systems

Compact filter KF-E

Data sheet

pdf (899 KB)
