High pressure unit LubiCool®-M

Areas of application

The KNOLL high pressure unit LubiCool®-M is a mobile high pressure unit for machine tools, particulary fixed- and sliding headstock automatic lathes. The system cleans the CL and provides the machine with high pressure.

It is suitable for

  • demanding machining processes
  • deep hole drilling in one move
  • processing with difficult materials (e.g. high-alloyed steel, titanium, copper, bronze)
  • original equipment and retrofitting

Properties

Benefits

Compact and mobile

Space-saving and flexible installation

Plug-and-Play

• Fast installation

• Easy retrofitting

High pressure up to 150 bar

• Short-breaking chips

• Reduced processing times due to higher cutting speeds

• Extended life of the tools

Effective filtration via belt filter

• Reduced concentration of ultra-fine particles

• Long service life of components and the cooling lubricant (CL)

Wear-resistant screw spindle pump

Long service life and process reliability

Demand-driven pump control

• Lower energy costs

• Lower heat development

• Longer durability

Attractive price-performance ratio

Short amortization time

Description

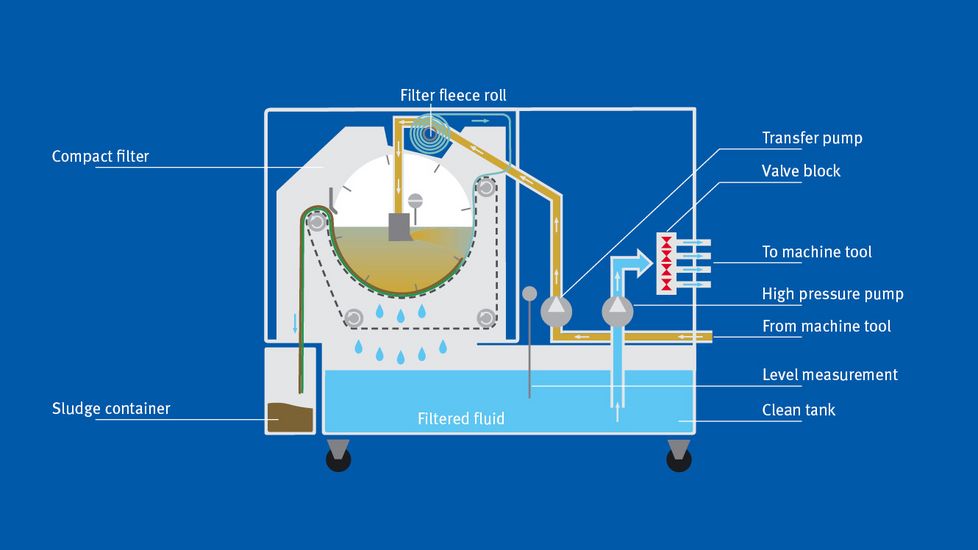

  1. The transfer pump pumps the dirty CL from the machine tool into the compact filter.
  2. The compact filter separates chips and the soiling from the CL, which flows in the clean media tank.
  3. The dirty fleece is collected in the sludge container.
  4. The high pressure pump provides the machine tool with cleaned CL through switchable outputs.
  5. The integrated touchpad allows the control and visualization of the most important system parameters.

Scheme
