KNOLL's LubiCool®-S high-pressure unit is designed for mobile use with machine tools in machining processes, particularly automatic lathes with a fixed/sliding headstock. The unit is used to clean the cooling lubricant and to supply the machine with high pressure.

Its possible applications include

• Challenging machining processes
• Machining operations involving difficult materials (e.g. high-alloy steels, titanium, copper, bronze
• Situations where space for installation is particularly limited
• Initial equipment and retrofitting

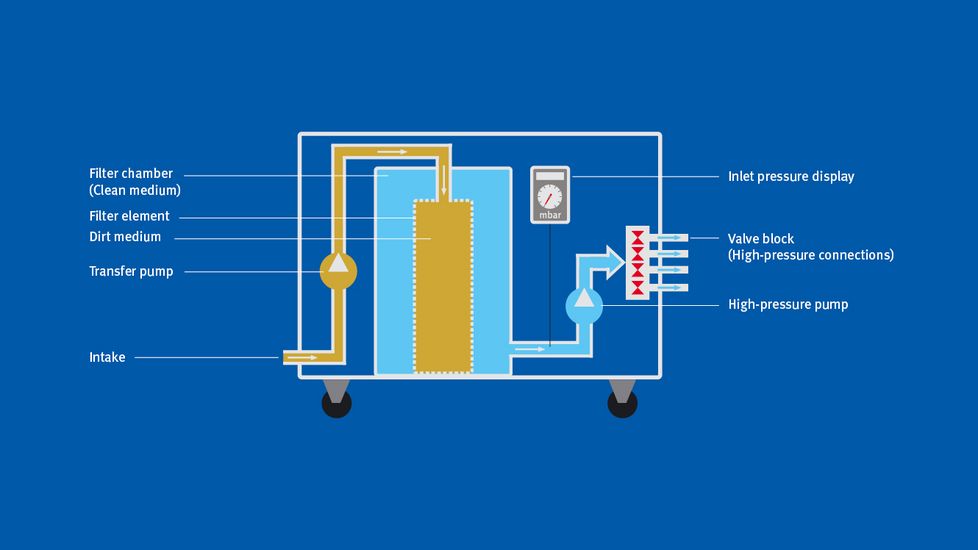

1. The transfer pump conveys the dirty cooling lubricant out of the machine tool and into the filter element.
2. The filter element removes the smallest chips, fine particles and foreign substances from the cooling lubricant
3. The cleaned cooling lubricant flows into the filter chamber
4. The high-pressure pump supplies the machine tool with cleaned cooling lubricant via switchable outputs on the valve block.
5. The integrated touchpad makes it possible to monitor and visualise the unit's most important operating data.
