Strap hinge conveyor S

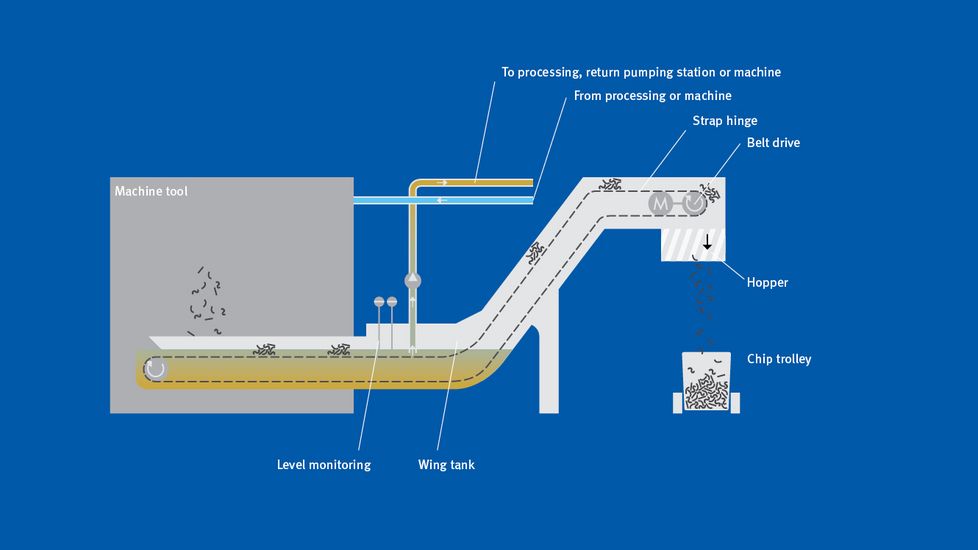

KNOLL strap hinge conveyors S are plants for transporting metal chips and small parts.

• Decentral use on individual and interlinked machine tools
• Central use for waste disposal from machine groups and entire production areas
• Suitable for long chips, chip balls, and wool chips
• Suitable for wet and dry processing

Main functions

• Collection of the chips/parts
• Transporting of the chips to the discharge point on the upper belt span

Additionally for wet processing

• Collecting of the cooling lubricant
• Separating of chips and cooling lubricant
• Buffering of cooling lubricant
• Transporting of the cooling lubricant for processing, return pumping station or machine

Continuous strap hinge

• 2 roller chain strands that are connected to steel plates
• Positively-driven chain circulation
• Tensioning through easy adjustment of the bearing retainers

Combination possibilities
For other requirements, on request we can combine the conveyor with

• Filter systems for cleaning the cooling lubricant and supplying the machine tool
• Chip reducers for generating pumpable or absorbent chips
• Return pumping stations for transporting chips and cooling lubricant to the central plant
• Extraction stations for transport of chips to the central plant
