Products - Single systems - Chip conveyors - Return pumping station RKR

Application

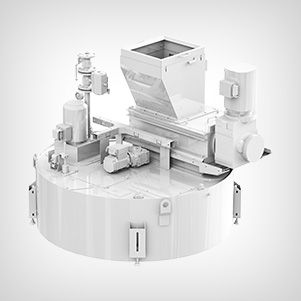

Provided pump-back stations are conveyor systems for placement on single machines and transfer lines. They are used for the unmanned transport of chips and cooling lubricant from the processing machine to a separator/filter. Cooling lubricants and chips that result during the cutting of materials such as steel, cast iron or aluminium are particularly suitable.

Properties	Benefits
Fully automatic cooling lubricant and chip conveyance	No manual intervention required
Variable height	Adaptation to customer conveyors
Chip reducer can be retrofitted	Adaptation to expanded requirements
Maintenance areas outside the machine	Easy accessibility
As an option with transport rollers	High mobility

Combination options

For further requirements, we can combine pump-back stations provided on request with

Chip reducers to achieve pumpable chips
Chip conveyors for discharging chips from the machine
Centralised separator/filter systems for cleaning the cooling lubricant and supplying the machines
Suction stations for further transport of the chips to the central system and the container station
Centrifuges and briquetting systems for further treatment of the chips

Main functions

Picking up medium to large quantities of chips via a feed hopper
Drawing in and reducing the size of the chips through the chip reducer (optional) and feeding them into the pump-back tank
Dosing the chip/cooling lubricant mixture to the return flow pump by means of a circular scraper
Transporting the chip/cooling lubricant mixture through the return flow pump to the separator/filter system

Downloads

Return pumping / recirculation stations

Pump-back stations R

Data sheet

pdf (1 MB)

Overview of our conveyor range:

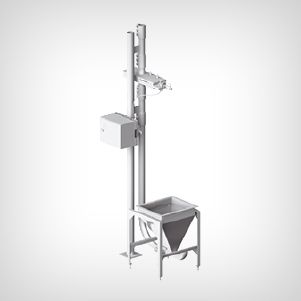

KNOLL extraction stations convey metal chips fully automatically from machine tools or collection points to the central extraction system.

Extraction stations

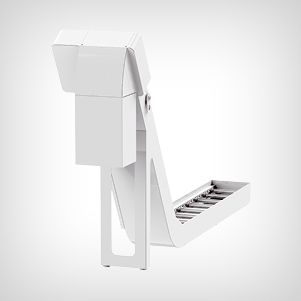

Förderanlage Kratzbandförderer K - KNOLL Maschinenbau GmbH

For short chips, small parts and sludge.

Scraper belt conveyor K

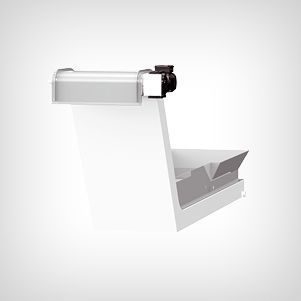

Förderanlage Magnetbandförderer M - KNOLL Maschinenbau GmbH

For short, ferromagnetic chips and small parts (e.g. stampings).

Magnetic band conveyor M

For transporting metal chips and small parts.

Slat band conveyor P

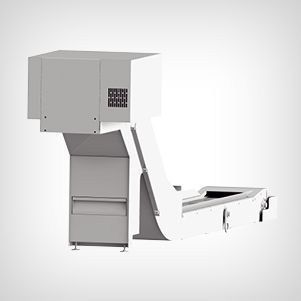

For transporting laser, punching and sheet metal parts.

Slat band conveyor P-40-L

For side installation on single units and transfer lines. With pump back tank, return pump(s) and chip reducer (optional).

Return pumping station RKR

Supplied return pump station for placement on individual machines and transfer lines. Particularly suitable for lubricoolant and chips produced during cutting operations on materials such as steel, cast iron or aluminum.

Return pumping station RHV

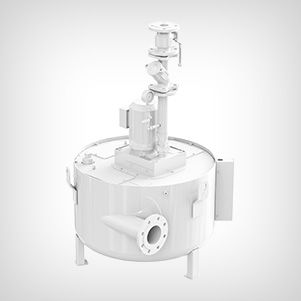

For side installation on machine tools which produce small amounts of chips, particularly grinders. With pump back tank and return pump(s).

Return pumping station RSR

For integration into machine beds. With pump back tank, screw conveyor(s) and chip reducer (optional). For steel only suitable to a limited extent.

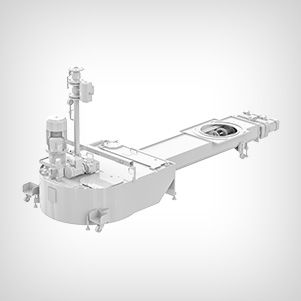

Return pumping station RIK

Integrated return pump station for integration into a machine bed. Particularly suitable for coolant and chips produced during cutting operations on materials such as steel, cast iron or aluminum.

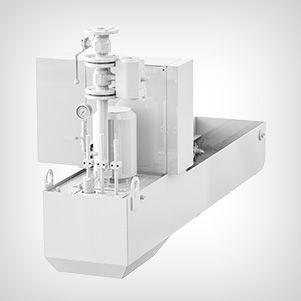

Return pumping station RKH
