Areas of application

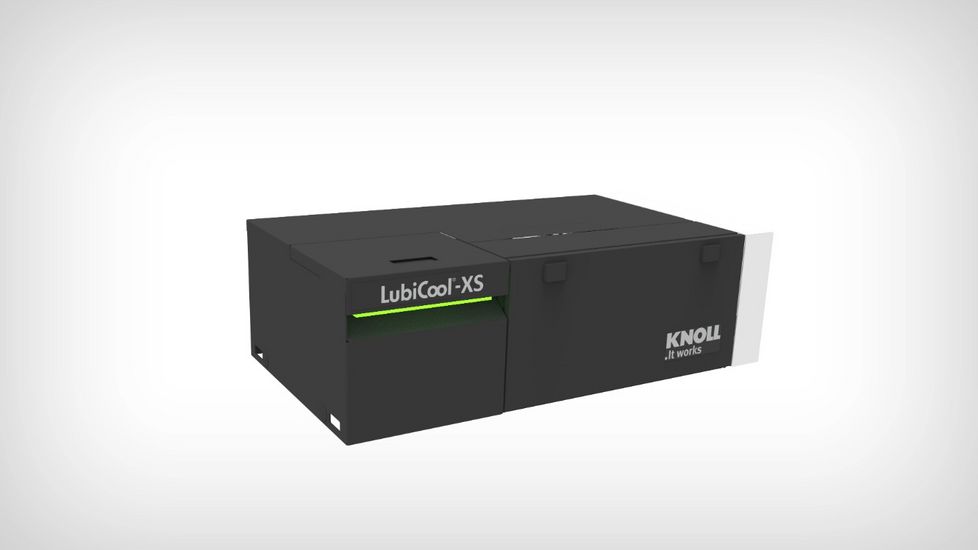

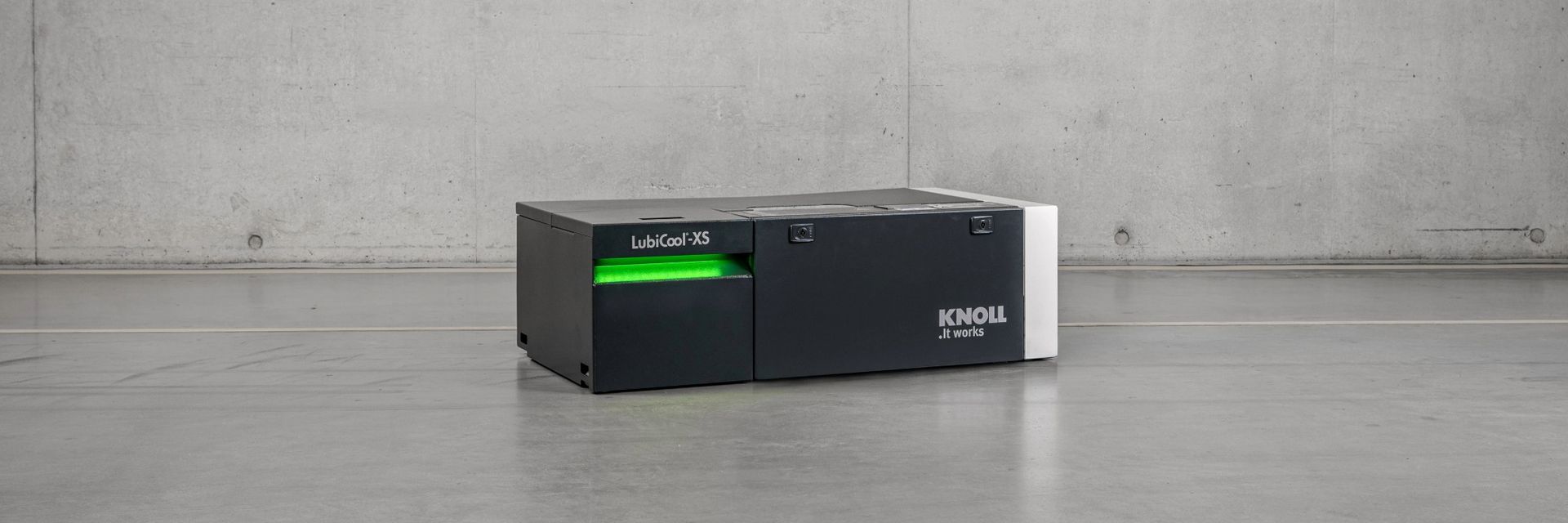

The KNOLL high-pressure unit LubiCool®-XS is a mobile high-pressure unit for chip-forming machine tools, in particular sliding headstock automatic lathes used in micro-machining. The unit is used for cleaning the cooling lubricant and for supplying the machine with high pressure.

It is suitable, among other things:
• For demanding machining processes
• For machining difficult materials (e.g. high-alloy steels, titanium, copper, lead-free materials)
• For every confined installation situations and limited available space
• For initial equipment and retrofitting

Features	Benefits
Compact and mobile	• Space-saving and flexible installation possible under standard bar loading magazines
Plug-and-Play	• Fast installation • Easy retrofitting
High pressure up to 70 bar	• Short, easy broken chips • Reduced machining times thanks to higher cutting speeds • Increased tool life
Effective filtration with filter element	• Long service life of components and cooling lubricants • Long service life of the filter element • Low effort when changing the filter element • Lockable filter element
Wear-resistant screw spindle pump	• Long service life and high process reliability • Low noise emission • Low pulsation
Attractive price-performance ratio	• Short payback period

Description

The transferpump conveys the contaminated coolant from the machine tool into the filter element.
The filter element separated very small chips, fine particles, and foreign matter from the coolant.
The cleaned coolant flows into the filter chamber.
The high-pressure pump supplies the machine tool with cleaned coolant via switchable outlets.
An LED-status indicator enables monitoring of the operating states of the high-pressure unit.

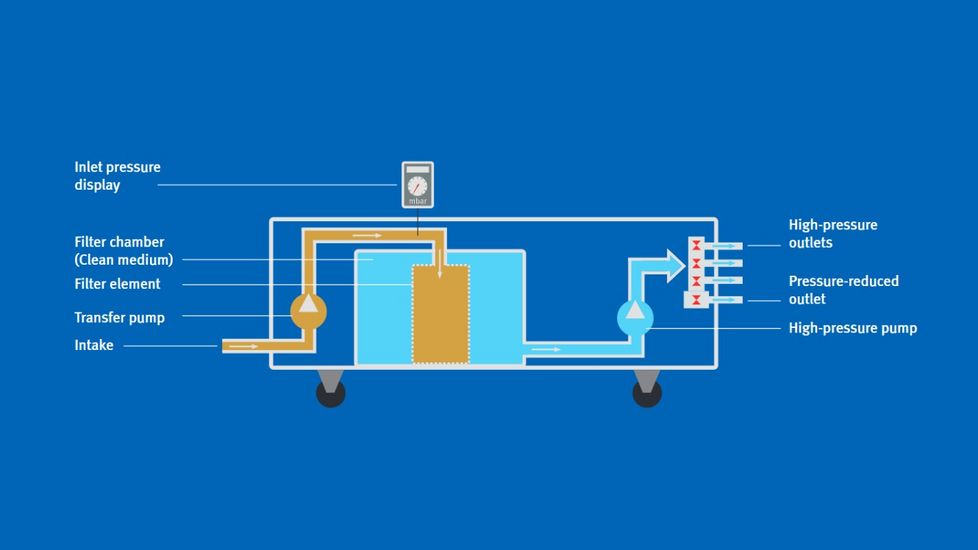

Scheme

Downloads

High pressure units

High pressure units LubiCool®-XS

Data sheet

pdf (773 KB)
